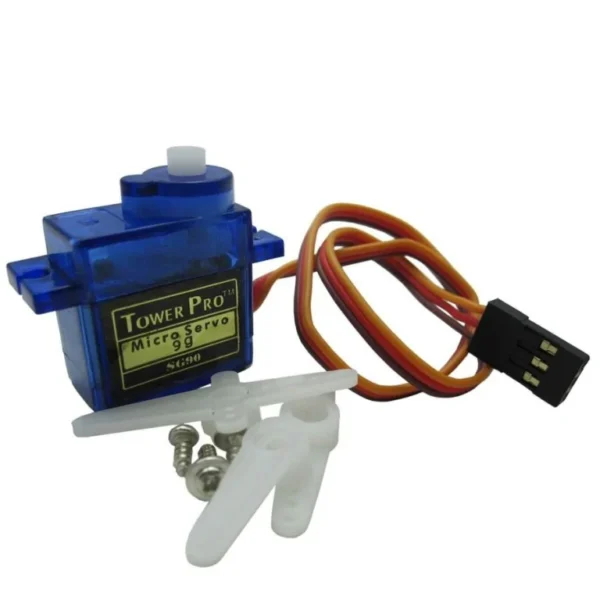

TowerPro SG90 Mini Servo – 180 degree Rotation – Standard Quality
TowerPro SG90 Mini Servo – 180 degree Rotation – Standard Quality - Image 2
TowerPro SG90 Mini Servo – 180 degree Rotation – Standard Quality - Image 3
,

TowerPro SG90 Mini Servo – 180 degree Rotation – Standard Quality

Add to wishlist
Compare

Features :

  1. High resolution
  2. Accurate positioning
  3. Fast control response
  4. Constant torque throughout the servo travel range
  5. Excellent holding power
Model SG90
Weight(gm) 9
Operating Voltage (VDC) 3.0 ~ 7.2
Operating Speed @4.8V 0.10sec/60°
Stall Torque @ 4.8V (Kg-Cm) 1.2
Stall Torque @6.6V (Kg-Cm) 1.6
Operating Temperature (°C) -30 to 60
Dead Band Width ( μs) 7
Gear Type Glass Fiber
Rotational Degree 180º
Servo Plug JR
Cable Length (cm) 25
Length (mm) 22.8
Width (mm) 12.6
Height (mm) 34.5

₹124.00

Compare

TowerPro Servo Motors are optimum-quality and affordable cost servos.! They are suitable for a wide range of applications, including RC aircraft, automobiles, and robotics, Or just to have some fun with whatever crazy project you’re working on.

When you purchase TowerPro motors in India, they are almost usually NOT ORIGINAL, and these are no exception…. These are NOT ORIGINAL Tower Pro Servos, either. However, they are dead cheap and Serve the purpose. We put them to the test and found them to be of good quality for the price.

You can buy E Max Servos OR Orange servos if you’re seeking high-quality servos.

Wire Description
  • RED – Positive
  • Brown – Negative
  • Orange – Signal

Package Includes :

  • 1 x TowerPro SG90 9g Mini Servo Motor with Cable
  • 1 x Set of Horns
  • 1 x Set of Screws
