MOTORS AND DRIVERS, PUMP MOTORS

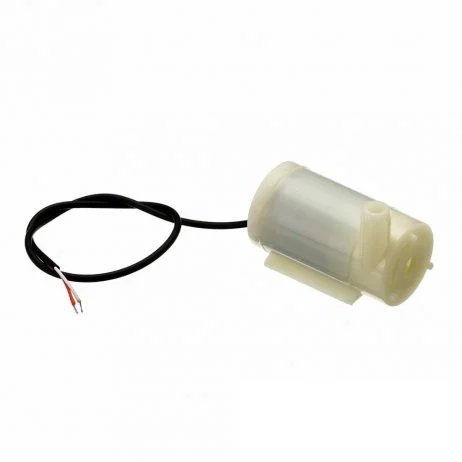

DC 3-6 V Mini Micro Submersible Water Pump
- Operating Voltage : 2.5 ~ 6V
- Operating Current : 130 ~ 220mA
- Flow Rate : 80 ~ 120 L/H
- Maximum Lift : 40 ~ 110 mm
- Outlet Outside Diameter: 7.5 mm
- Outlet Inside Diameter: 5 mm
Features :
- DC 3v to 6v submersible pump
- micro mini submersible water pump 3v to 6v
- DC water pump for DIY
- DC pump for HOBBY kit.
| Maximum Lift (mm) | 40 to 110 |
|---|---|
| Continuous Working Life (hours) | 500 |
| Driving Mode | DC, Magnetic Driving |
| Material | Plastic |
| Inner Diameter (ID) (mm) | 5 |
| Outer Diameter (OD)(mm) | 7.5 |
₹85.00
CompareYou might be searching for a pump that operates on 3-6 V and gives an output of above 70 L/H then this could be the best choice for your project.
This DC 3-6 V Mini Micro Submersible Water Pump is a low-cost, small-size Submersible Pump Motor that can be operated from a 2.5 ~ 6V power supply. It can take up to 120 liters per hour with a very low current consumption of 220mA. Just connect the tube pipe to the motor outlet, submerge it in water, and power it.
Note:
- Make sure that the water level is always higher than the motor. The dry run may damage the motor due to heating and it will also produce noise.
- This product is available in two different colors like Black and White, which will be shipped randomly so please note you will get anyone out of both colors.
Package Includes :
1 x DC 3-6 V Mini Micro Submersible Water Pump
