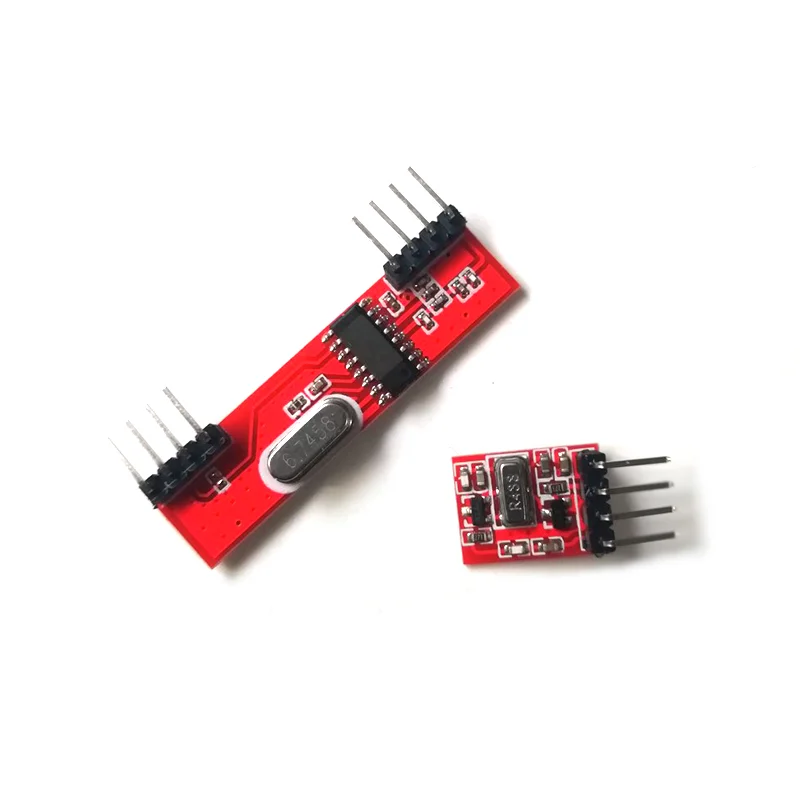

433Mhz RSI Wireless Transmitter Receiver Module

433Mhz RSI Wireless Transmitter Receiver Module

Add to wishlist
Compare

Features :

  1. Low Power Consumption.
  2. Easy For RF-based Application.
  3. Complete Radio Transmitter.
  4. Transmit Range Up To 50m.
  5. CMOS / TTL Input.
  6. No Adjustable Components.
  7. Very Stable Operating Frequency
  8. Low Current Consumption (Typ 11mA)
  9. Wide Operating Voltage (1.5-5v)
  10. ASK Modulation
Range in Open Space(m) 30
Transmitter Frequency Range(MHz) 433.92
Receiver Frequency Range(MHz) 433
Sensitivity 105 dBm
Receiver Supply Current(mA) 3.5
RX IF Frequency(MHz) 1
Receiver Operating Voltage(V) 5
Transmitter Supply Voltage(V) 3 to 6
Transmitter Output Power(dBm) 4 to 12
TX Module Size(mm) 13x12x4 (LxWxH)
RX Module Size(mm) 13x45x4 (LxWxH)
Weight(gm) 6

₹149.00

Compare

This hybrid 433Mhz RSI Wireless Transmitter Receiver Module provides a complete RF transmitter and receiver module solution which can be used to transmit data at up to 3KHz from any standard CMOS/TTL source.

The transmitter module is very simple to operate and offers low current consumption (typical. 11mA). Data can be supplied directly from a microprocessor or encoding device, thus keeping the component count down and ensuring a low hardware cost.

The RX – ASK is an ASK Hybrid receiver module. The RF Transceiver Module is an effective low-cost solution for using 433 MHz. The TX-ASK is an ASK hybrid transmitter module. TX-ASK is designed by the saw resonator, with an effective low cost, small size and simple to use for designing.

Applications :
  1. Remote Controls
  2. Automation System
  3. Wireless Security System
  4. Sensor Reporting
  5. Car Security System
  6. Remote Keyless Entry
