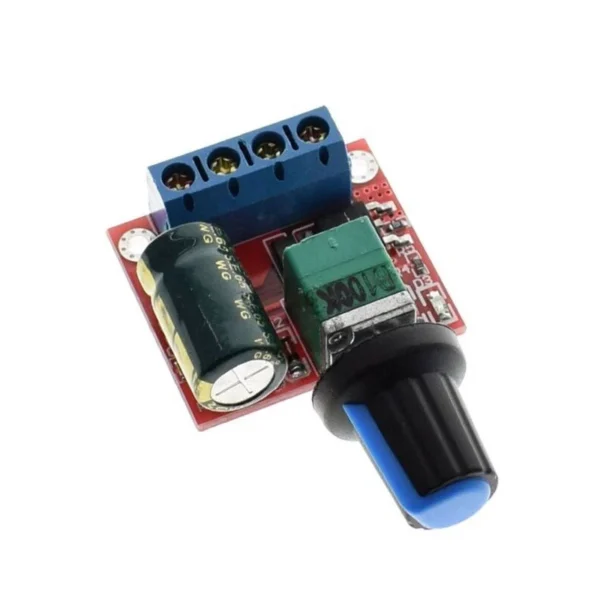

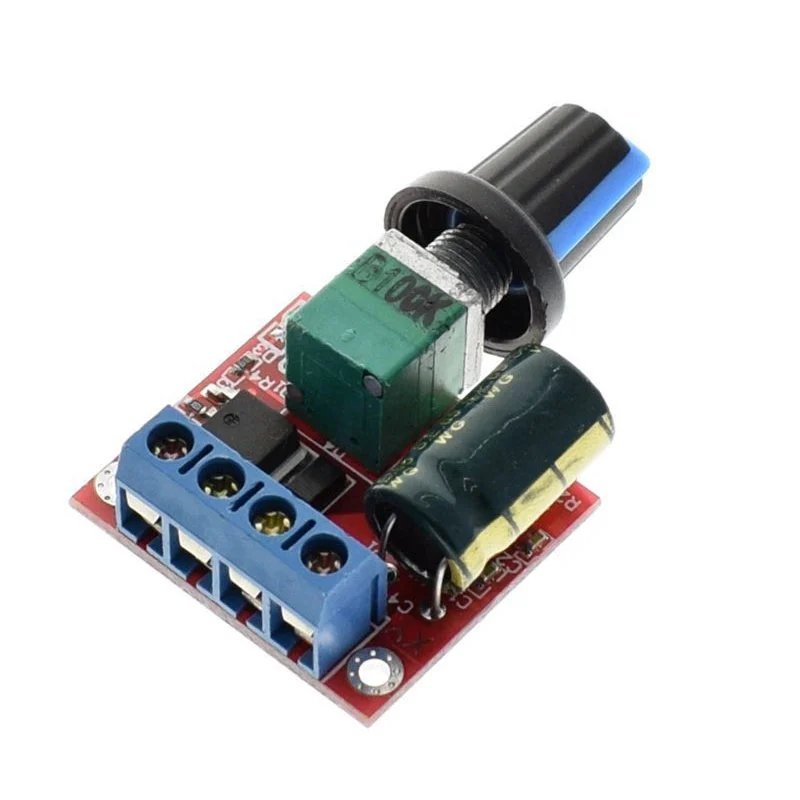

3V 6V 12V 24V 35V PWM DC Motor Speed Regulator

3V 6V 12V 24V 35V PWM DC Motor Speed Regulator is a Mini Style DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM).

Precautions:

• DC motor governor input is DC, can not directly connect to the AC (for example home 220V AC), otherwise, it will burn!
• DC power supply positive and negative terminals do not reverse, otherwise, the governor may be damaged.
• The motor can be positive or negative when the direction of operation and expectations do not match, you can adjust the line order to change the direction.
• Adjust the potentiometer knob to change the governor output duty cycle, the motor speed changes.

Specification

• Operating voltage : DC 4.5V-35V
• Output current : 0-2A
• Output power : 70W (max)
• Quiescent current : 7uA (standby)
• PWM duty cycle : 1% -100%
• PWM frequency : 20khz
• Dimension(mm) : 30mm x 26mm x 14mm (Without Handle)

Features

• Mini DC 4.5-35V 5A PWM Motor Speed Controller.
• Wide voltage DC motor speed controller.
• Operating voltage: DC4.5V-35V
• Output current: 0-2A
• Output power: 70W (max)
• PWM duty cycle: 1% -100%.

Package Includes

• 1 x 3V 6V 12V 24V 35V PWM DC Motor Speed Regulator
